Quality filters

These switches control which releases remain in the picker. Every format starts enabled. Turn off formats your device cannot play, then use Sorting to order the remaining releases. When at least one named switch in a category is on, a recognized value must match an enabled switch; Other / Unknown admits missing or unlisted metadata, not a recognized format you excluded. Titles are parsed into resolution, HDR, audio, and video codec metadata. A release can contain several recognized audio or HDR tags; matching an enabled tag can admit it. If every named switch in one category is off, that category becomes unrestricted for recognized values. Its Other / Unknown switch still controls missing or unlisted metadata. Keep at least one named switch on to exclude the other named formats. Filtering does not transcode or repair a file.52

Kodi screenshots

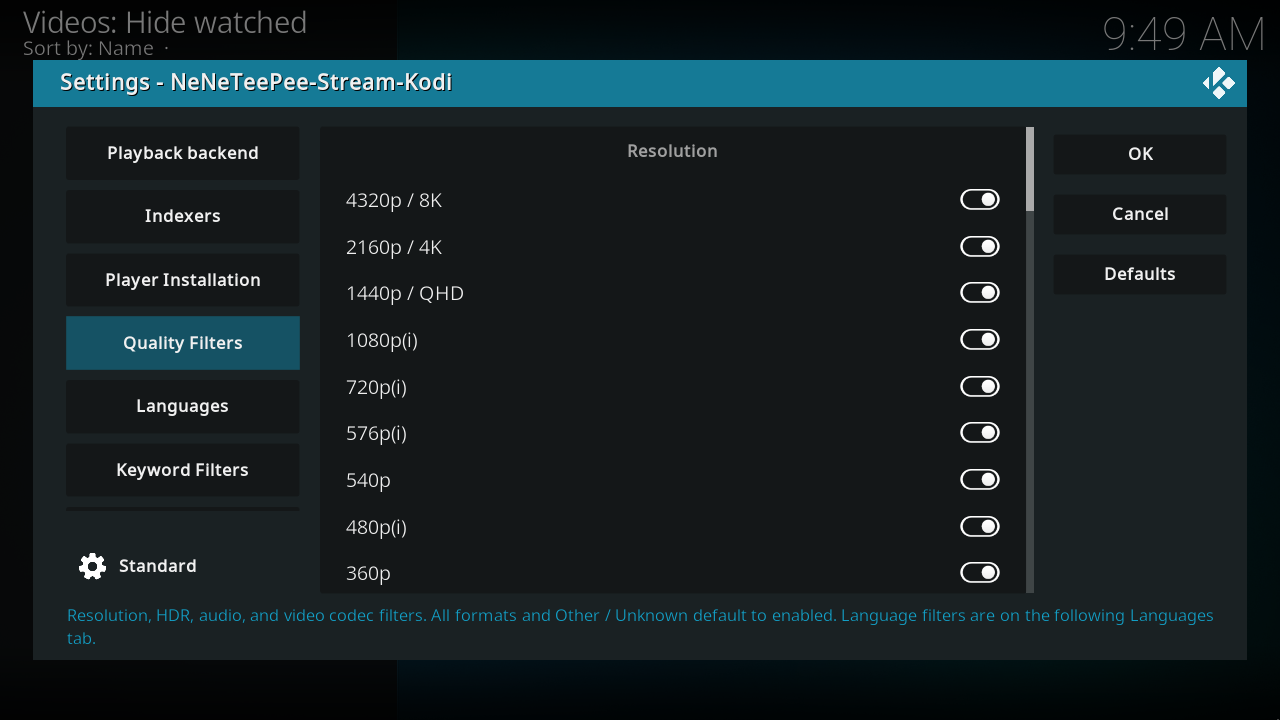

Quality Filters, view 1

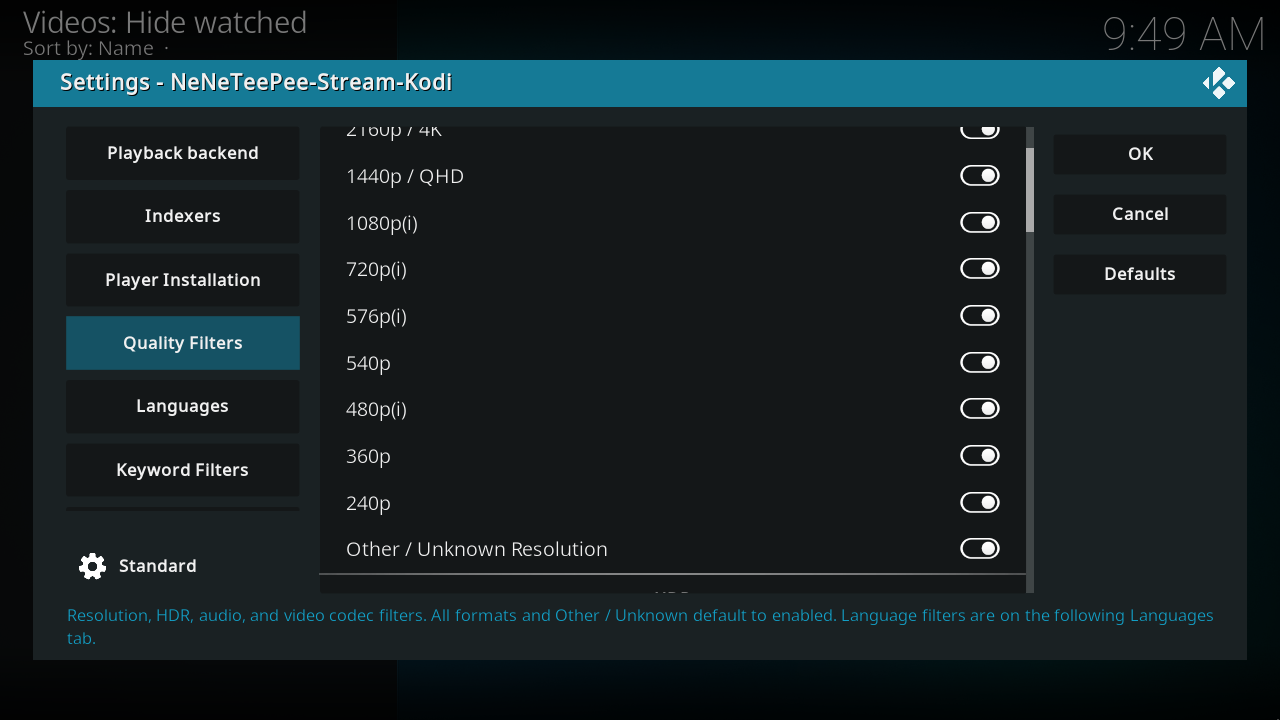

Quality Filters, view 2

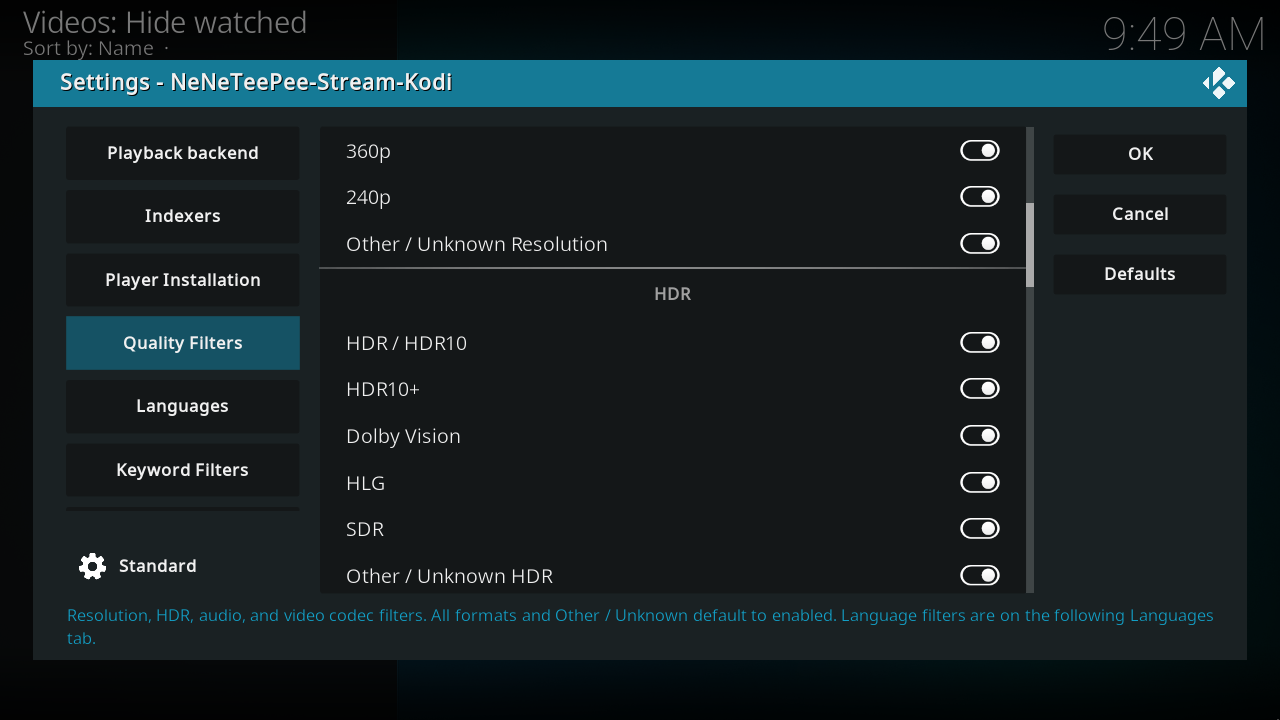

Quality Filters, view 3

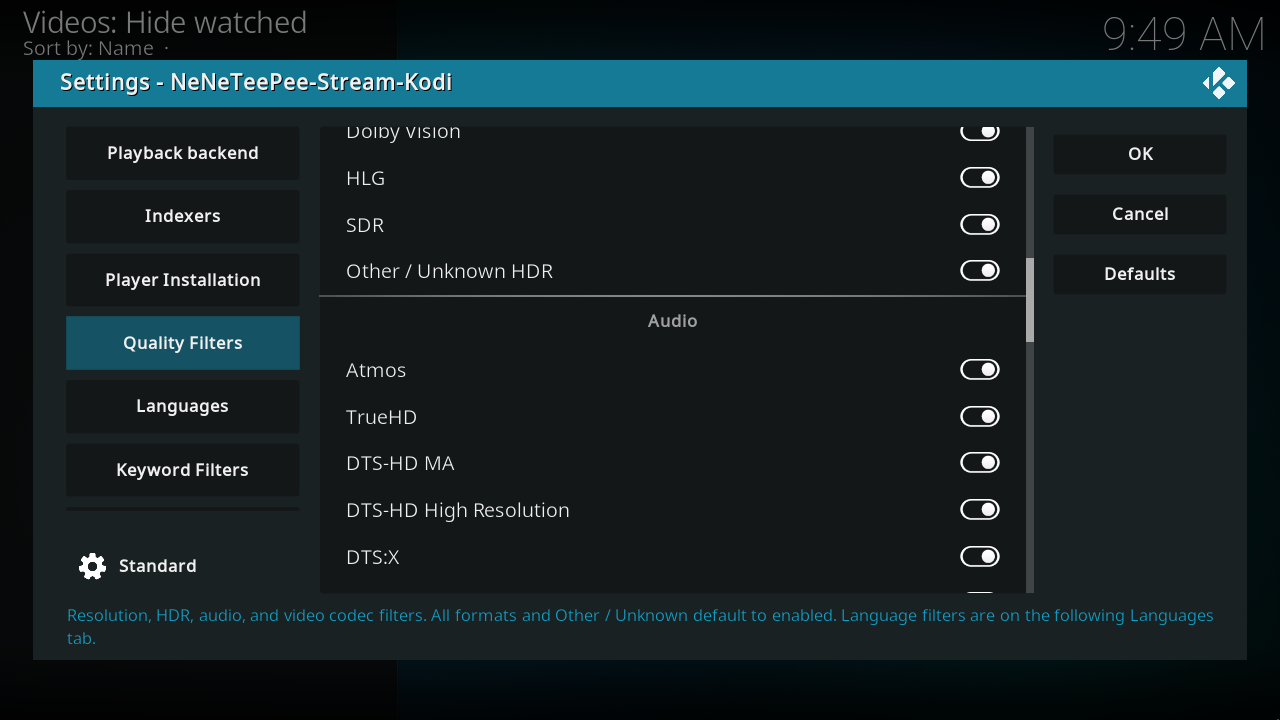

Quality Filters, view 4

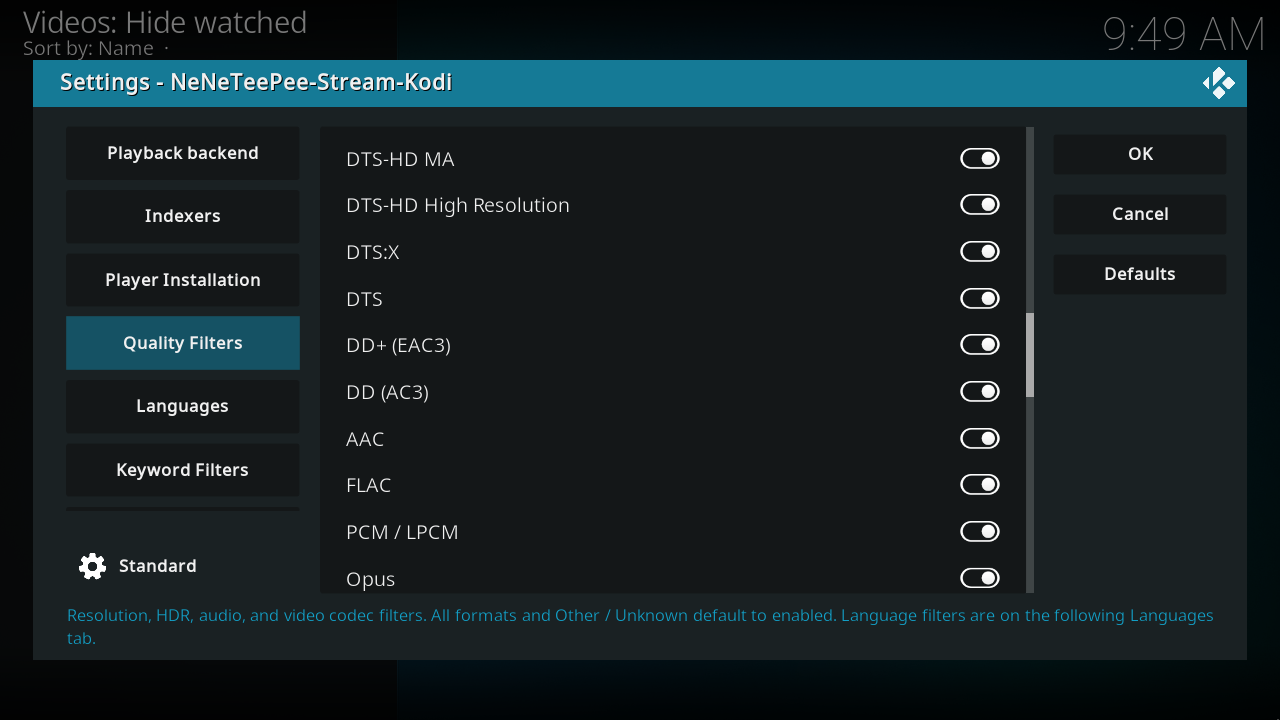

Quality Filters, view 5

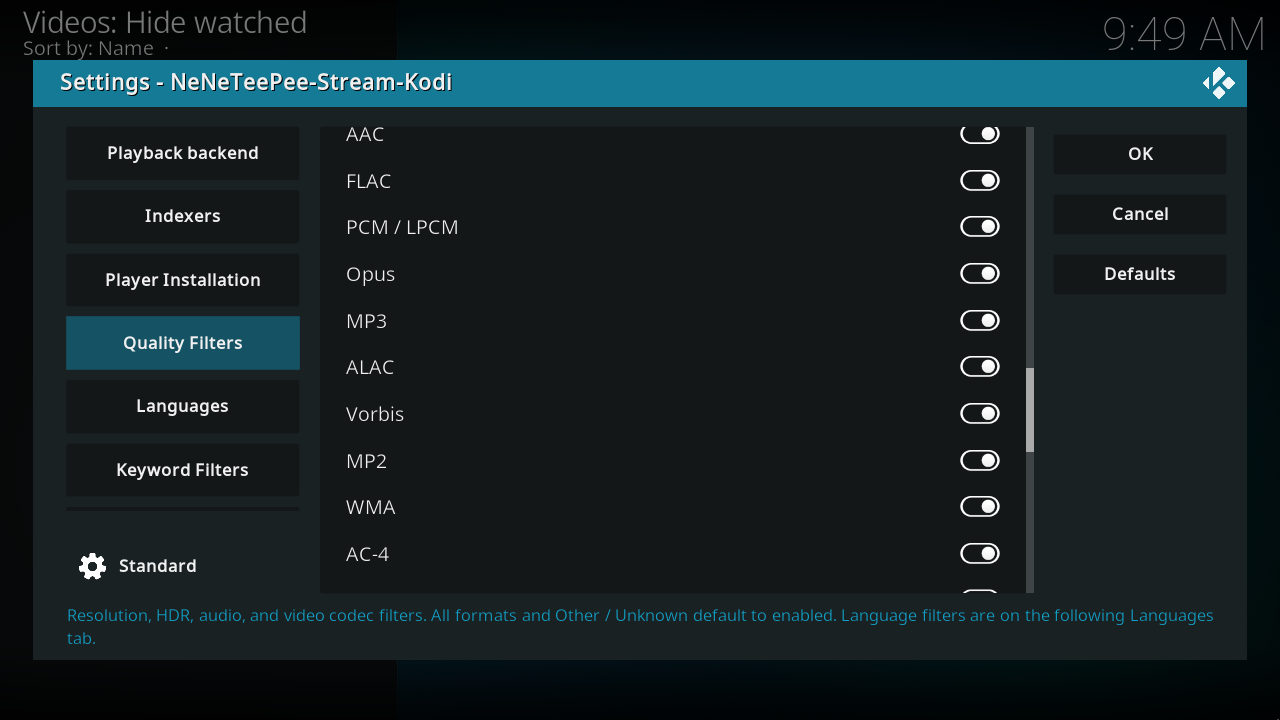

Quality Filters, view 6

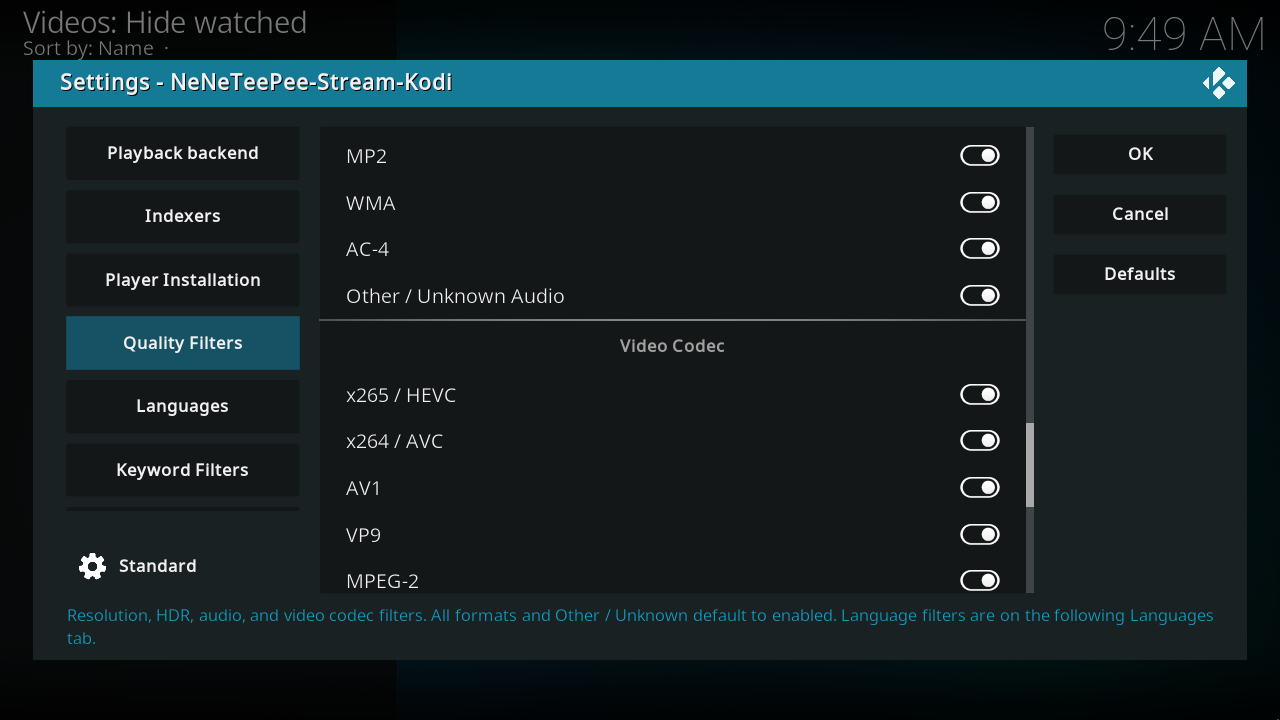

Quality Filters, view 7

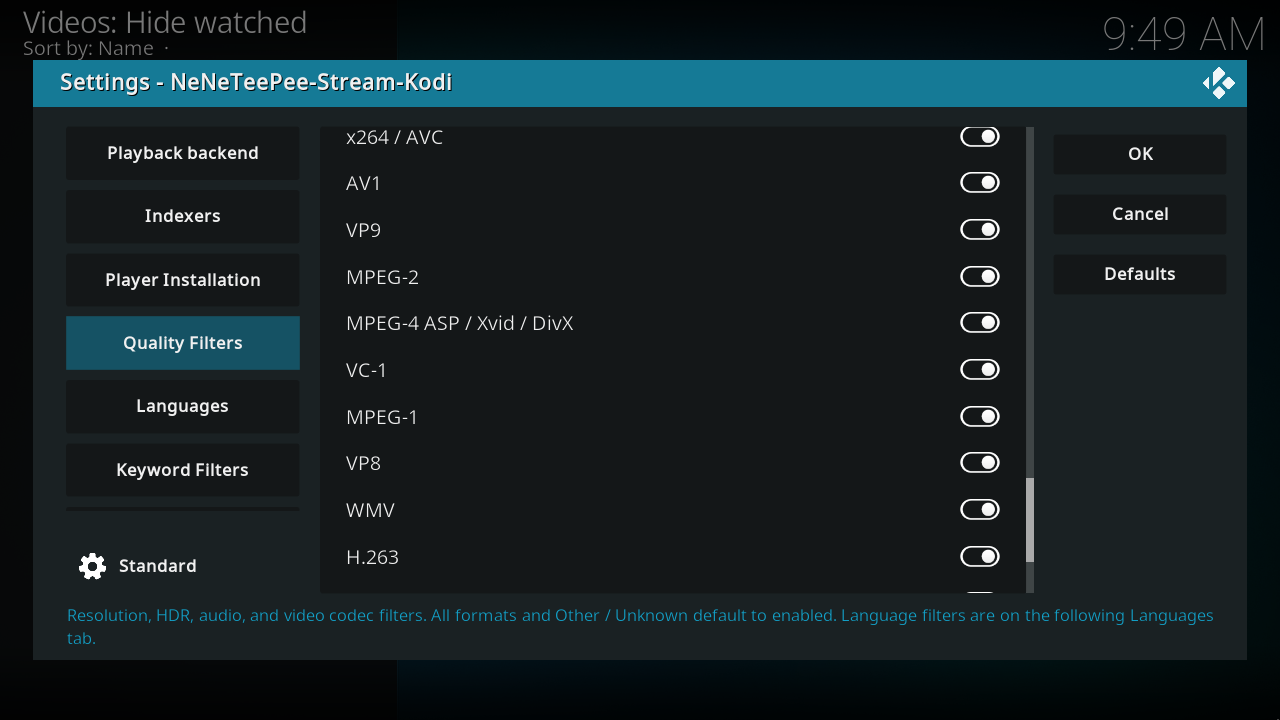

Quality Filters, view 8

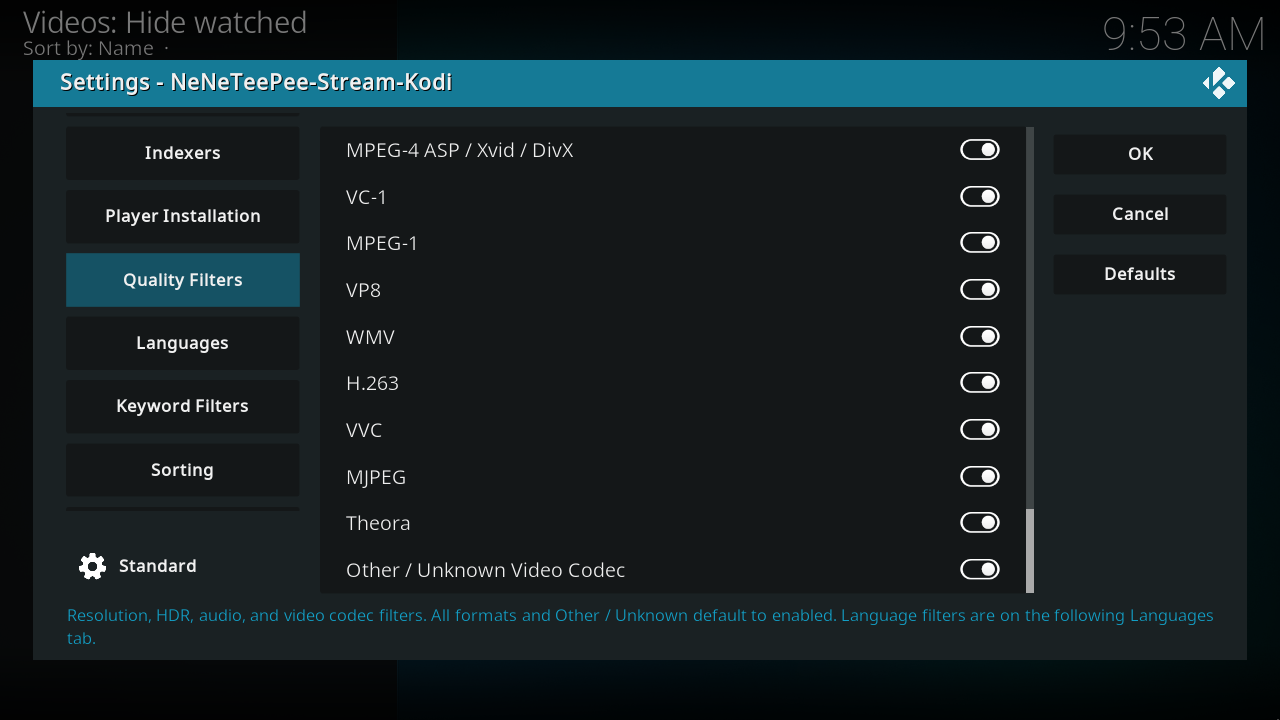

Quality Filters, view 9

Captured on the OrbStack Kodi VM from commit db07f61. Debug overlays are off, and credentials use example values. Capture details.

Every option

Resolution

Option and setting ID Default What it does
4320p / 8K1
filter_4320p		 On Include 8K / 4320p releases, including titles containing 7680x4320. Missing or unlisted metadata follows Other / Unknown in this category.
2160p / 4K2
filter_2160p		 On Include 2160p / 4K releases. Missing or unlisted metadata follows the Other / Unknown option in this category.
1440p / QHD3
filter_1440p		 On Include 1440p / QHD releases, including titles containing 2560x1440. Missing or unlisted metadata follows Other / Unknown in this category.
1080p(i)4
filter_1080p		 On Include both 1080p and interlaced 1080i releases. Missing or unlisted metadata follows the Other / Unknown option in this category.
720p(i)5
filter_720p		 On Include both 720p and interlaced 720i releases. Missing or unlisted metadata follows the Other / Unknown option in this category.
576p(i)6
filter_576p		 On Include 576p and interlaced 576i releases. Missing or unlisted metadata follows Other / Unknown in this category.
540p7
filter_540p		 On Include 540p releases, including 960x540. Missing or unlisted metadata follows Other / Unknown in this category.
480p(i)8
filter_480p		 On Include both 480p and interlaced 480i releases. Missing or unlisted metadata follows the Other / Unknown option in this category.
360p9
filter_360p		 On Include 360p releases, including 640x360. Missing or unlisted metadata follows Other / Unknown in this category.
240p10
filter_240p		 On Include 240p releases, including 320x240. Missing or unlisted metadata follows Other / Unknown in this category.
Other / Unknown Resolution11
filter_unknown_resolution		 On Allow releases with no recognized resolution, or an unlisted value. Enabled by default. This does not bypass selections for recognized resolution values.

HDR

Option and setting ID Default What it does
HDR / HDR1012
filter_hdr10		 On Include releases explicitly tagged HDR or HDR10. Missing or unlisted metadata follows the Other / Unknown option in this category.
HDR10+13
filter_hdr10plus		 On Include HDR10+, HDR+, HDRPlus, HDR10Plus, and HDR10P title tags. Missing or unlisted metadata follows the Other / Unknown option in this category.
Dolby Vision14
filter_dolby_vision		 On Include releases explicitly tagged DV, DoVi, or Dolby Vision. Missing or unlisted metadata follows the Other / Unknown option in this category.
HLG15
filter_hlg		 On Include HLG releases. Missing or unlisted metadata follows the Other / Unknown option in this category.
SDR16
filter_sdr		 On Include SDR releases. Missing or unlisted metadata follows the Other / Unknown option in this category.
Other / Unknown HDR17
filter_unknown_hdr		 On Allow releases with no recognized HDR / dynamic-range tag, or an unlisted value. Enabled by default. This does not bypass selections for recognized HDR / dynamic-range tag values.

Audio

Option and setting ID Default What it does
Atmos18
filter_atmos		 On Include Atmos releases. Missing or unlisted metadata follows the Other / Unknown option in this category.
TrueHD19
filter_truehd		 On Include TrueHD releases. Missing or unlisted metadata follows the Other / Unknown option in this category.
DTS-HD MA20
filter_dtshd_ma		 On Include DTS-HD MA releases. Missing or unlisted metadata follows the Other / Unknown option in this category.
DTS-HD High Resolution21
filter_dtshd_hr		 On Include DTS-HD High Resolution (DTS-HD HR / HRA). This is a separate selection from DTS core and lossless DTS-HD Master Audio. Missing or unlisted metadata follows Other / Unknown in this category.
DTS:X22
filter_dtsx		 On Include DTS:X releases. Missing or unlisted metadata follows the Other / Unknown option in this category.
DTS23
filter_dts		 On Include standard DTS / DTS core audio. DTS is classified separately from Dolby Digital and DTS-HD. Missing or unlisted metadata follows Other / Unknown in this category.
DD+ (EAC3)24
filter_ddplus		 On Include DD+ (EAC3) releases. Missing or unlisted metadata follows the Other / Unknown option in this category.
DD (AC3)25
filter_dd		 On Include DD (AC3) releases. Missing or unlisted metadata follows the Other / Unknown option in this category.
AAC26
filter_aac		 On Include AAC releases. Missing or unlisted metadata follows the Other / Unknown option in this category.
FLAC27
filter_flac		 On Include FLAC lossless audio. This includes mono and stereo remux releases. Missing or unlisted metadata follows Other / Unknown in this category.
PCM / LPCM28
filter_pcm		 On Include uncompressed PCM and LPCM audio. Missing or unlisted metadata follows Other / Unknown in this category.
Opus29
filter_opus		 On Include Opus audio. OPUS, Opus, and opus are recognized equally. Missing or unlisted metadata follows Other / Unknown in this category.
MP330
filter_mp3		 On Include MP3 / MPEG Audio Layer III audio. Missing or unlisted metadata follows Other / Unknown in this category.
ALAC31
filter_alac		 On Include Apple Lossless (ALAC) audio. Missing or unlisted metadata follows Other / Unknown in this category.
Vorbis32
filter_vorbis		 On Include Vorbis / Ogg Vorbis audio. Missing or unlisted metadata follows Other / Unknown in this category.
MP233
filter_mp2		 On Include MP2 / MPEG Audio Layer II audio. Missing or unlisted metadata follows Other / Unknown in this category.
WMA34
filter_wma		 On Include Windows Media Audio (WMA). Missing or unlisted metadata follows Other / Unknown in this category.
AC-435
filter_ac4		 On Include Dolby AC-4 audio. AC-4 has its own selection separate from AC-3 and E-AC-3. Missing or unlisted metadata follows Other / Unknown in this category.
Other / Unknown Audio36
filter_unknown_audio		 On Allow releases with no recognized audio format, or an unlisted value. Enabled by default. This does not bypass selections for recognized audio format values.

Video codec

Option and setting ID Default What it does
x265 / HEVC37
filter_hevc		 On Include x265 / HEVC releases. Missing or unlisted metadata follows the Other / Unknown option in this category.
x264 / AVC38
filter_avc		 On Include x264 / AVC releases. Missing or unlisted metadata follows the Other / Unknown option in this category.
AV139
filter_av1		 On Include AV1 releases. Missing or unlisted metadata follows the Other / Unknown option in this category.
VP940
filter_vp9		 On Include VP9 releases. Missing or unlisted metadata follows the Other / Unknown option in this category.
MPEG-241
filter_mpeg2		 On Include MPEG-2 releases. Missing or unlisted metadata follows the Other / Unknown option in this category.
MPEG-4 ASP / Xvid / DivX42
filter_mpeg4		 On Include MPEG-4 ASP video, including Xvid and DivX. This is separate from H.264 / AVC. Missing or unlisted metadata follows Other / Unknown in this category.
VC-143
filter_vc1		 On Include VC-1 / WVC1 video, found on some Blu-ray and HD DVD releases. Missing or unlisted metadata follows Other / Unknown in this category.
MPEG-144
filter_mpeg1		 On Include MPEG-1 video. Missing or unlisted metadata follows Other / Unknown in this category.
VP845
filter_vp8		 On Include VP8 video. VP9 has its own selection. Missing or unlisted metadata follows Other / Unknown in this category.
WMV46
filter_wmv		 On Include Windows Media Video (WMV). VC-1 has its own selection. Missing or unlisted metadata follows Other / Unknown in this category.
H.26347
filter_h263		 On Include H.263 video. H.264 / AVC has its own selection. Missing or unlisted metadata follows Other / Unknown in this category.
VVC48
filter_vvc		 On Include VVC / H.266 video. Matching a release does not guarantee your device can decode it. Missing or unlisted metadata follows Other / Unknown in this category.
MJPEG49
filter_mjpeg		 On Include Motion JPEG / MJPEG video. Missing or unlisted metadata follows Other / Unknown in this category.
Theora50
filter_theora		 On Include Theora video. Missing or unlisted metadata follows Other / Unknown in this category.
Other / Unknown Video Codec51
filter_unknown_codec		 On Allow releases with no recognized video codec, or an unlisted value. Enabled by default. This does not bypass selections for recognized video codec values.

Source notes

Labels and schema defaults are from commit db07f61. Runtime limits can differ from the editable schema; the explanations identify those limits. Links use the full commit ID, so later changes to main do not move them.
