Playback backend

Choose the service that resolves playback. The selected backend controls which connection fields Kodi shows. nzbdav / InfiniDysk submits NZBs through a SABnzbd-compatible API and streams over WebDAV. NZBGet downloads and unpacks the release before Kodi reads the completed file. StreamNZB searches on its server and returns an HTTP playback URL. Its playback bypasses the local proxy and local indexer clients. See the backend setup guides for connection examples.

Kodi screenshots

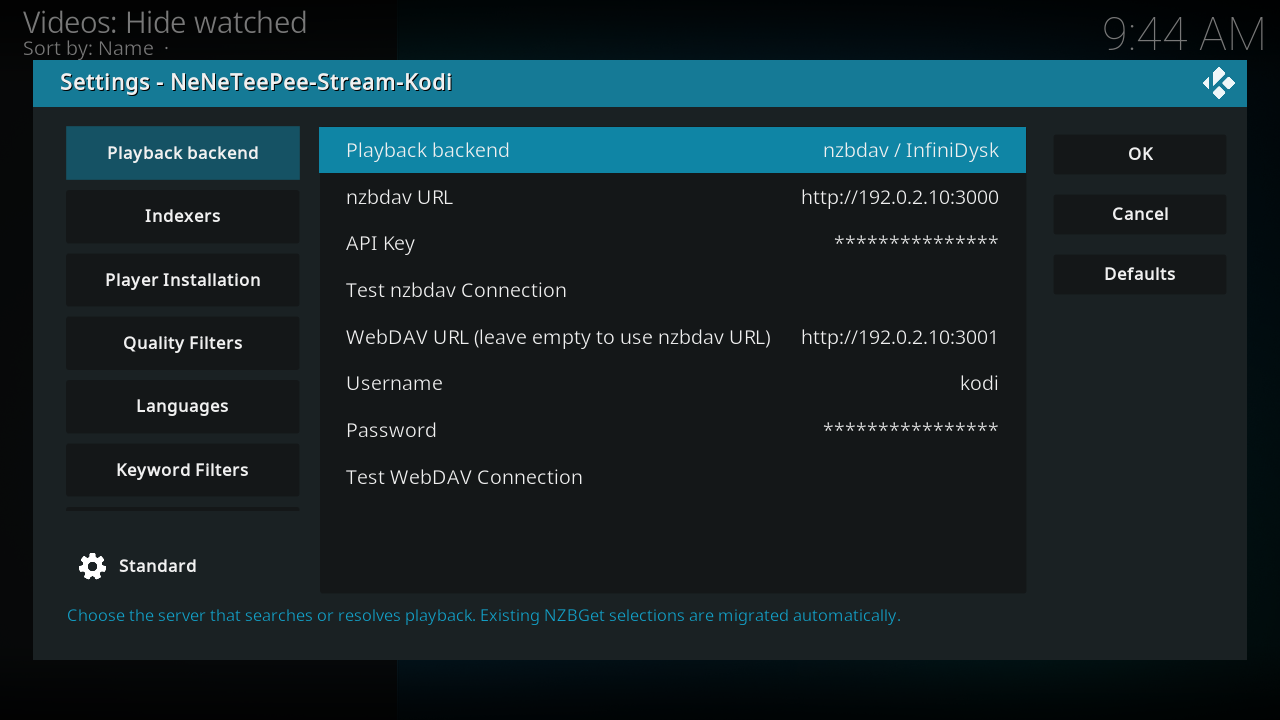

Playback backend, view 1

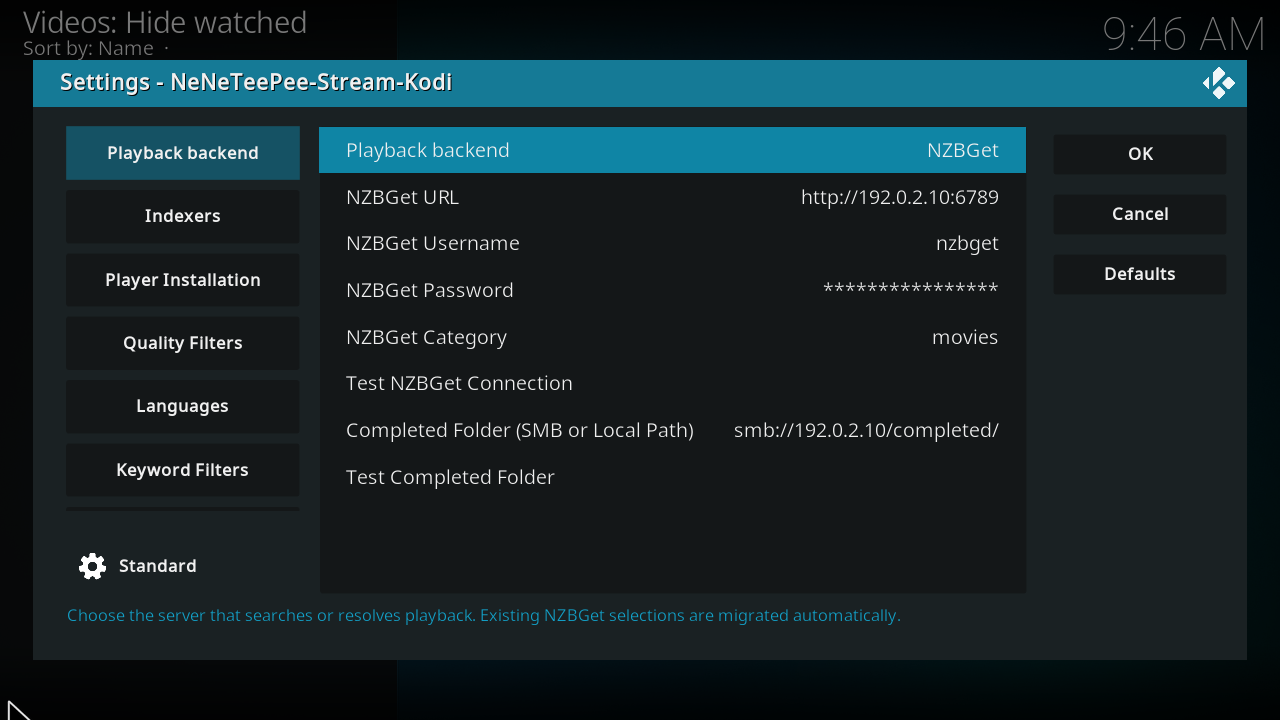

Playback backend, view 2

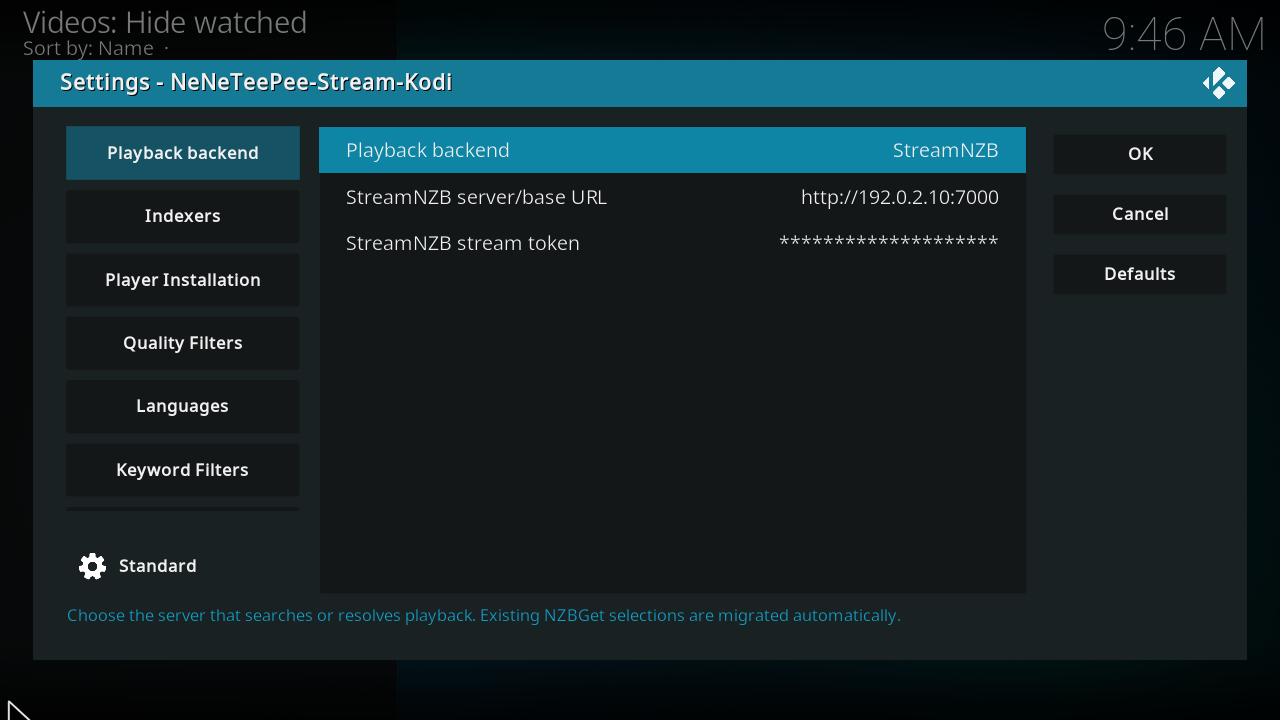

Playback backend, view 3

Captured on the OrbStack Kodi VM from commit db07f61. Debug overlays are off, and credentials use example values. Capture details.

Every option

Options

Option and setting ID Default What it does
Playback backend1
playback_backend		 nzbdav / InfiniDysk Choose the server that searches or resolves playback. Existing NZBGet selections are migrated automatically. Choices: 0 = nzbdav / InfiniDysk, 1 = NZBGet, 2 = StreamNZB.
StreamNZB server/base URL2
streamnzb_url		 Empty Use an HTTP or HTTPS base URL reachable from Kodi. Localhost refers to the Kodi device. Visible when playback_backend = 2.
StreamNZB stream token3
streamnzb_token		 Empty Use a StreamNZB stream token from its Install page. This field is masked. Do not enter the dashboard administrator password. Kodi uses the token to authorize searches and playback URLs. Visible when playback_backend = 2.
nzbdav URL4
nzbdav_url		 http://localhost:3000 Base URL of your nzbdav server (SABnzbd-compatible API). Used to submit and poll downloads. Visible when playback_backend = 0.
API Key5
nzbdav_api_key		 Empty nzbdav API key, from Settings > Usenet > API Key in nzbdav. Visible when playback_backend = 0.
Test nzbdav Connection6
action_test_nzbdav		 Button Verify the nzbdav URL and API key are reachable and valid. Visible when playback_backend = 0.
WebDAV URL (leave empty to use nzbdav URL)7
webdav_url		 http://localhost:8080 Base URL of the WebDAV server used to stream files. Leave empty to reuse the nzbdav URL. Visible when playback_backend = 0.
Username8
webdav_username		 Empty WebDAV username, from Settings > WebDAV in nzbdav. Visible when playback_backend = 0.
Password9
webdav_password		 Empty WebDAV password. The dialog masks the value; the profile settings file stores it. Visible when playback_backend = 0.
Test WebDAV Connection10
action_test_webdav		 Button Verify WebDAV is reachable with the current URL and credentials. Visible when playback_backend = 0.
NZBGet URL11
nzbget_url		 http://localhost:6789 NZBGet control address, for example http://host:6789. Visible when playback_backend = 1.
NZBGet Username12
nzbget_username		 nzbget NZBGet control username. Visible when playback_backend = 1.
NZBGet Password13
nzbget_password		 Empty NZBGet control password. The dialog masks the value; the profile settings file stores it. Visible when playback_backend = 1.
NZBGet Category14
nzbget_category		 Empty Category to submit downloads under. Also used to help locate the completed file. Visible when playback_backend = 1.
Test NZBGet Connection15
action_test_nzbget		 Button Verify NZBGet is reachable with the current URL and credentials. Visible when playback_backend = 1.
Completed Folder (SMB or Local Path)16
nzbget_smb_root		 Empty smb:// URL or local/mounted path of NZBGet's completed-downloads base, used to play the finished file. Visible when playback_backend = 1.
Test Completed Folder17
action_test_nzbget_smb		 Button Verify the completed-downloads folder (SMB share or local path) is reachable. Visible when playback_backend = 1.

Source notes

Labels and schema defaults are from commit db07f61. Runtime limits can differ from the editable schema; the explanations identify those limits. Links use the full commit ID, so later changes to main do not move them.

  1. Setting declaration; runtime reference. ↩

  2. Setting declaration; runtime reference. ↩

  3. Setting declaration; runtime reference. ↩

  4. Setting declaration; runtime reference. ↩

  5. Setting declaration; runtime reference. ↩

  6. Setting declaration. ↩

  7. Setting declaration; runtime reference. ↩

  8. Setting declaration; runtime reference. ↩

  9. Setting declaration; runtime reference. ↩

  10. Setting declaration. ↩

  11. Setting declaration; runtime reference. ↩

  12. Setting declaration; runtime reference. ↩

  13. Setting declaration; runtime reference. ↩

  14. Setting declaration; runtime reference. ↩

  15. Setting declaration. ↩

  16. Setting declaration; runtime reference. ↩

  17. Setting declaration; runtime reference. ↩
